máquina automática de nylon del lazo de la cremallera PA66 de 1.2S 1000W

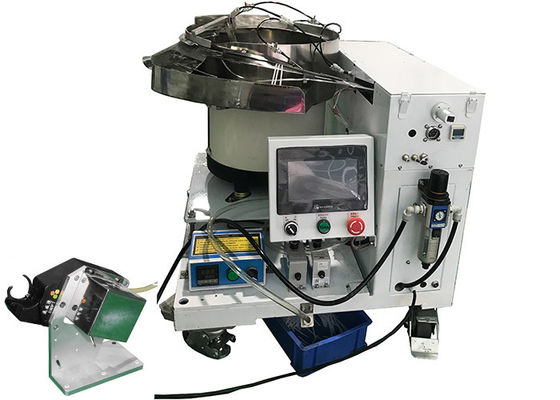

Hands Free Automatic Cable Tie Machine With Fixed Zip Tie Gun 1.2S Speed


Basic applications

Be suitable for bundling various of irregular objects. Operator can adjust the bundle angle at random y and it is still easy to bind the items.

And the binding forces are adjustable.

Scope of applications

Applicable cable tie: loose nylon cable ties, T36150, W3.6 * L150mm * T1.2mm.

Applicable products: To tie nylon zip ties on copper tubes, wire harness, soft tubes, bags etc. ; the bundle diameters: ø3mm - ø31mm

Applied industry: wire harness, white goods/home appliance, food, copper tubes in air conditioning.

SWT36150F advantages

1. Use loose cable ties. Model T36150.

2. Automatically wrap, tighten and cut off cable ties once touch the trigger.

3. The waste material would be collected into a box.

4. The binding speed 1.2S per cable tie.

5. Be able to improve the bundle efficinecy and save cost.

6. With big touch screen, Chinese and English display. It is easy to manage and set parameters.

7. Auto detecting: auto detect jammed and cleaned cable ties, then restart.

SWT36150F base data

Nylon bulk zip ties requirment


1. Main size: W3.6 * L150 * T1.2mm;

2. Head size: L6.5 * W6.5 * H4.7mm;

3. Material: nylon PA66 (good quality)

4. Tensile strength: 14kg (stronger)

5. Shape: straight and no burr/flash


Packing details

Machine: packed in two wooden cases.

Cable ties: 20,000pcs/carton boxes
